Goulds
Goulds FT4B-29, 4 inch Twin Pipe Jet Assembly for Deep Well Convertible Jet Pumps
Goulds FT4B-29, 4 inch Twin Pipe Jet Assembly for Deep Well Convertible Jet Pumps
Regular price
$194.88
Regular price
Sale price
$194.88
Unit price
/
per
See Price in Cart
Couldn't load pickup availability
This Twin Pipe Jet Assembly for Deep Well Convertible Jet Pumps is recommended for:
Depth to Jet Assembly (based on submergence of 5ft.) - 130 to 190ft. (5.8 to 3.2 GPM)
Control Valve Setting (PSI): 67 PSI

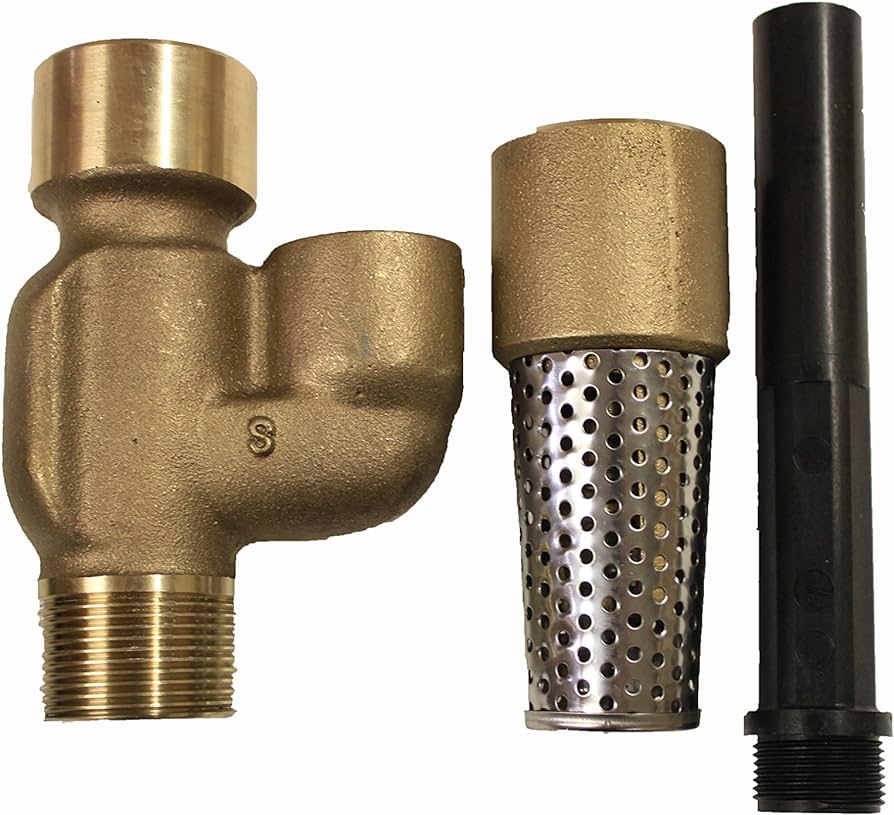

Jet assembly package includes jet body (AT4), venturi, nozzle and foot valve.
Deep well jet pumps require a pressure control device on the discharge to provide back pressure to the jet assembly. Failure to control the amount of discharge by adjusting the back pressure (pressure control valve setting) will cause the pump to lose prime.
On pumps with Iow control valve settings, up to 40 psi, a simple ball valve or AV15 will work.
On systems with control valve settings of 40 - 80 psi an AV22, AV22KIT or AV21 is required. They measure the pressure on the outbound side so that the high pressure does not open the 30-50 psi switch and turn the pump off.
Depth to Jet Assembly (based on submergence of 5ft.) - 130 to 190ft. (5.8 to 3.2 GPM)
Control Valve Setting (PSI): 67 PSI
Jet assembly package includes jet body (AT4), venturi, nozzle and foot valve.
Deep well jet pumps require a pressure control device on the discharge to provide back pressure to the jet assembly. Failure to control the amount of discharge by adjusting the back pressure (pressure control valve setting) will cause the pump to lose prime.
On pumps with Iow control valve settings, up to 40 psi, a simple ball valve or AV15 will work.
On systems with control valve settings of 40 - 80 psi an AV22, AV22KIT or AV21 is required. They measure the pressure on the outbound side so that the high pressure does not open the 30-50 psi switch and turn the pump off.
