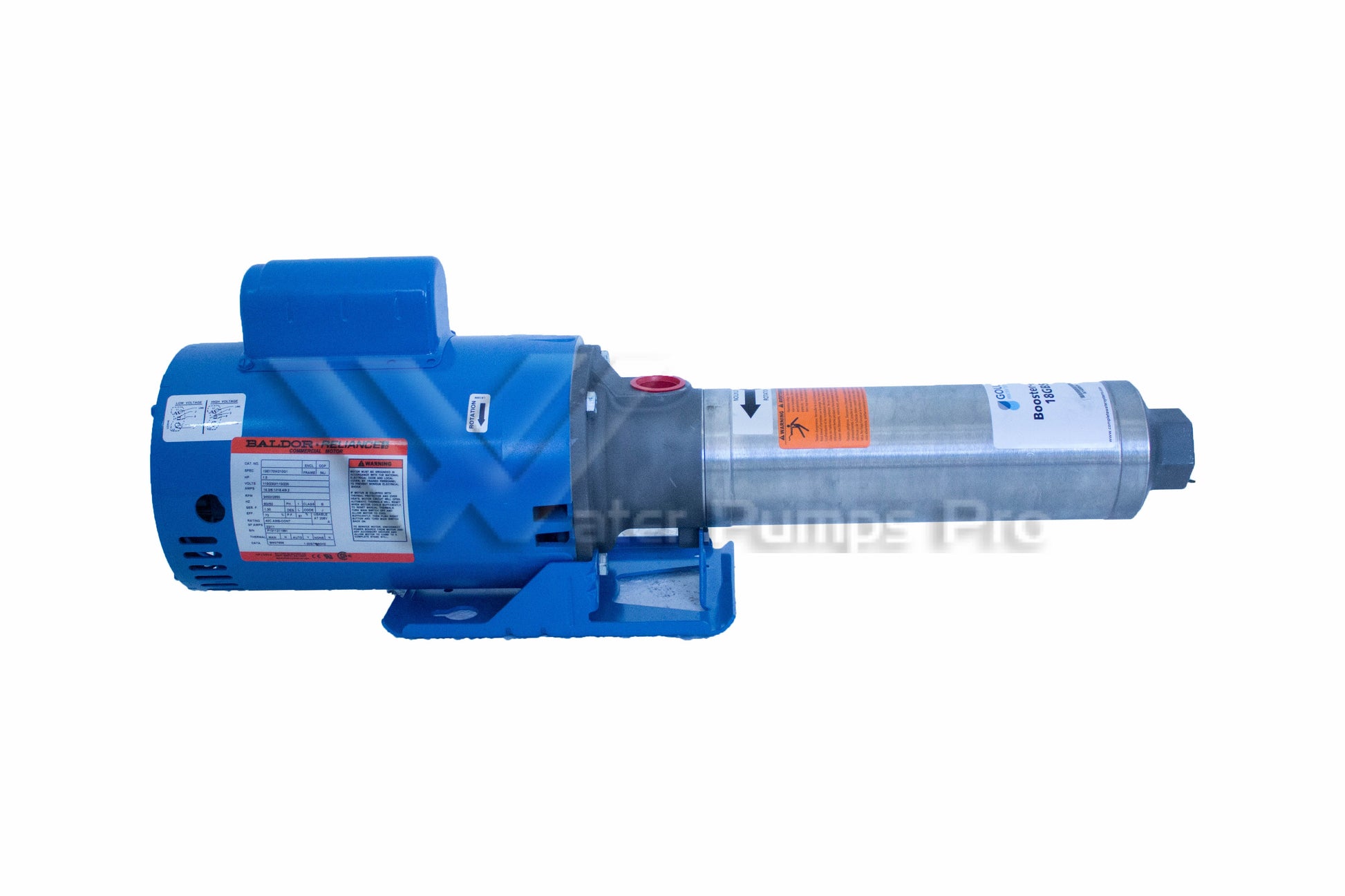

Goulds 10GBS1015K4 Multi-Stage Booster Pump 1HP

This item is obsolete

Goulds 10GBS1015K4 1 HP 10 Stage Residential, Commercial High Pressure Multi-Stage Booster Pumps.

Features

• Multi-stage Design: Provides steady, quiet, vibration free, operation.
• Optional Stainless Steel Construction: Standard cast iron for general service or stainless for filtration applications.
• O-Ring Casing Seal: Reliable high pressure sealing with easy disassembly for maintenance or repair.
• Impellers and Diffusers: Glass filled engineered composite material with a fixed impeller design. High resistance to corrosion and abrasion.
• Bowls: 300 stainless steel rabbit lock for positive alignment with no gaskets required.
• Variable Capacity: Centrifugal pump design permits selection of flow within a range for each size.
• Mechanical Seal: A variety of face materials and elastomers to match application needs.
• Motors: Close coupled NEMA 56J motors in open drip proof or totally enclosed design. Single phase and three phase available. Ball bearings carry all radial and axial thrust loads.

Designed for continuous operation.

Applications

Residential, commercial or agricultural pressure wash Reverse osmosis Evaporative cooling systems/misters Booster service Spray systems Water circulation Filtration HVACGeneral purpose pumping

Warnings

Pumps used on open spray applications must be plugged into electrical service which is protected by a Ground Fault Service Interruptor. Failure to do so may result in serious personal injury or death and property damage. Do not run pump dry. Do not run pump below minimum flow. If positive suction pressure is not available, be sure pump and suction line (with foot valve) are primed before starting pump.

Specifications

Pump Maximum suction (inlet) pressure: 75 PSI.

• Maximum Liquid Temperature: 160 F (71 C).
• Rotation: Clockwise when viewed from motor end. Maximum lift with foot valve: 10 ft., check NPSH curve.
• Motor: NEMA standard 56J frame. Open drip proof or totally enclosed fan cooled enclosures available as standard. Consult factory for other options. 60 Hz, 3500 RPM. Single phase (115/230 V), three phase 208-230 (3 HP, 230 V) or three phase (208-230/460 V). Single phase motors have built-in capacitor and overload with automatic reset.

Note

For three phase motors, Class 20 overload protection must be provided in starter unit. Starter with overloads must be ordered separately.

10GB SPECIFICATIONS Maximum Flow: 16 GPM Minimum Flow: 3 GPM Heads: to 560 ft. (242 PSI) Pipe Connections: 1" NPT Suction and Discharge

Goulds 10GBS1015K4 Muti-Stage Centrifugal Booster Pump(Water Cannon), 10 GPM, GB Pump Model, Stainless Steel material Discharge, head, and Suction Housing, 1HP, 3500 RPM, 3 Phase, TEFC Motor, 10 Stage Pump
