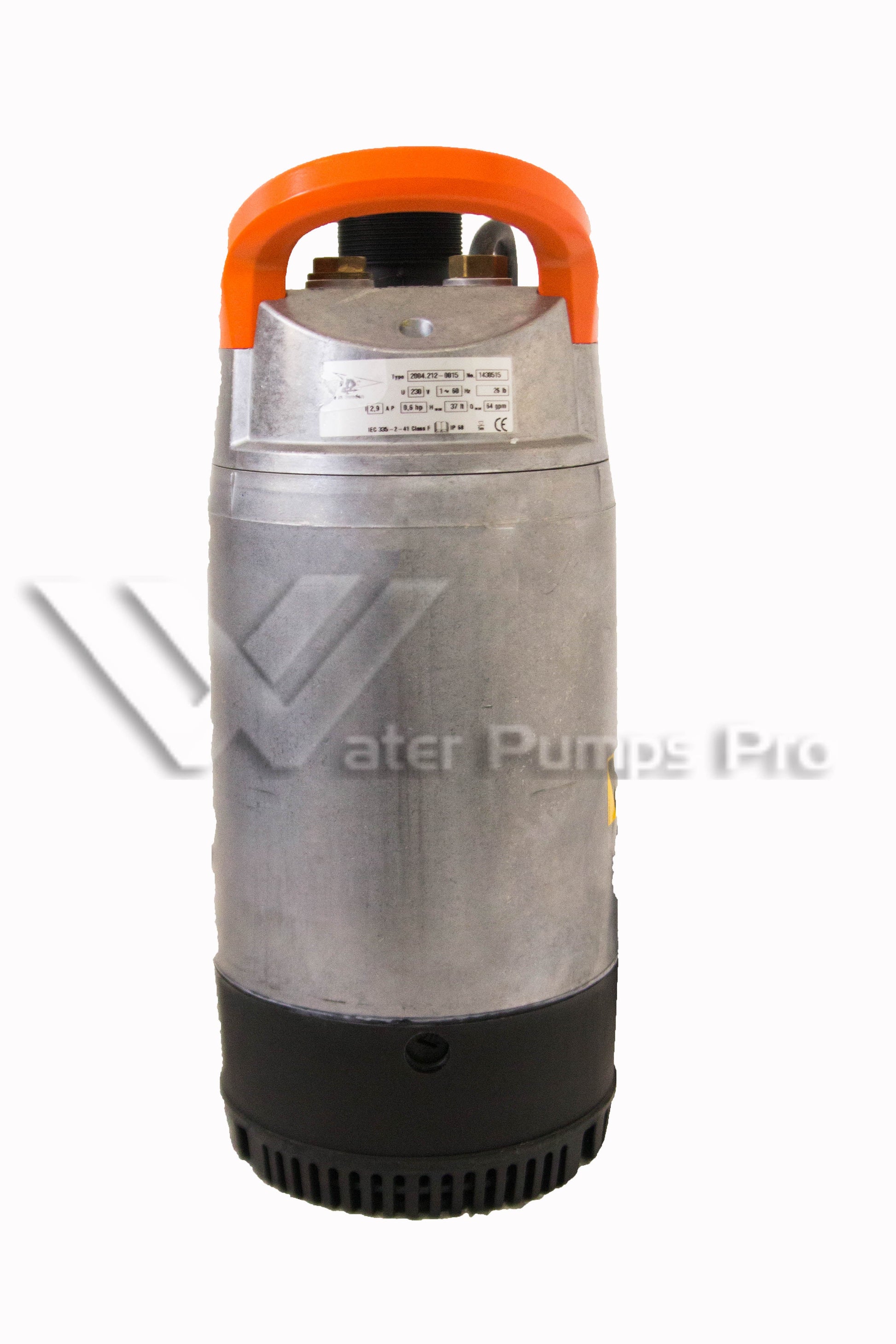

Goulds 2DW0512 Submersible Dewatering Pump 2DW 1/2HP 230V 1PH

This item is obsolete

Goulds 2DW0512 Sub Dewatering Pump 2DW 1/2HP 230V 1PH 2" Solids, 230 Volts, 2.9 Max Amps

Features

• Impeller: Polyurethane for wear and corrosion resistance.
• Adjustable Discharge: Discharge can be installed for either vertical or horizontal installation using only 2 screws.
• Diffuser: Polyurethane for wear and corrosion resistance.
• Mechanical Seal: Dual seals for double leakage protection, outer seal - silicon carbide.
• Rubber Liner: Protects against wear around impeller.
• Bottom Strainer: Made of impact absorbing EPDM rubber, suction holes allow for low pump down. APPLICATIONS Specifically designed to remove water from: Drainage ditches Trenches Basements Manholes Excavating drainage in the building trades SPECIFICATIONS Pump: Discharge size: 2" NPSM threaded hose coupling design, can be rotated Capacities: up to 84 GPM Total heads: up to 51 feet Maximum solids: any particles passing through strainer Mechanical seals: outer seal - silicon carbide, inner seal - carbon ceramic Temperature limit: 95F (35C) maximum Depth of immersion: 16.5 feet (5m) maximum
• Motor: Single phase: 3500 RPM, 1/2 HP, 230V, 60 Hz Built-in starter with full overload and temperature protection. Class F insulation. Air filled design. Upper and lower heavy duty ball bearing construction. Power cord: 50 feet
