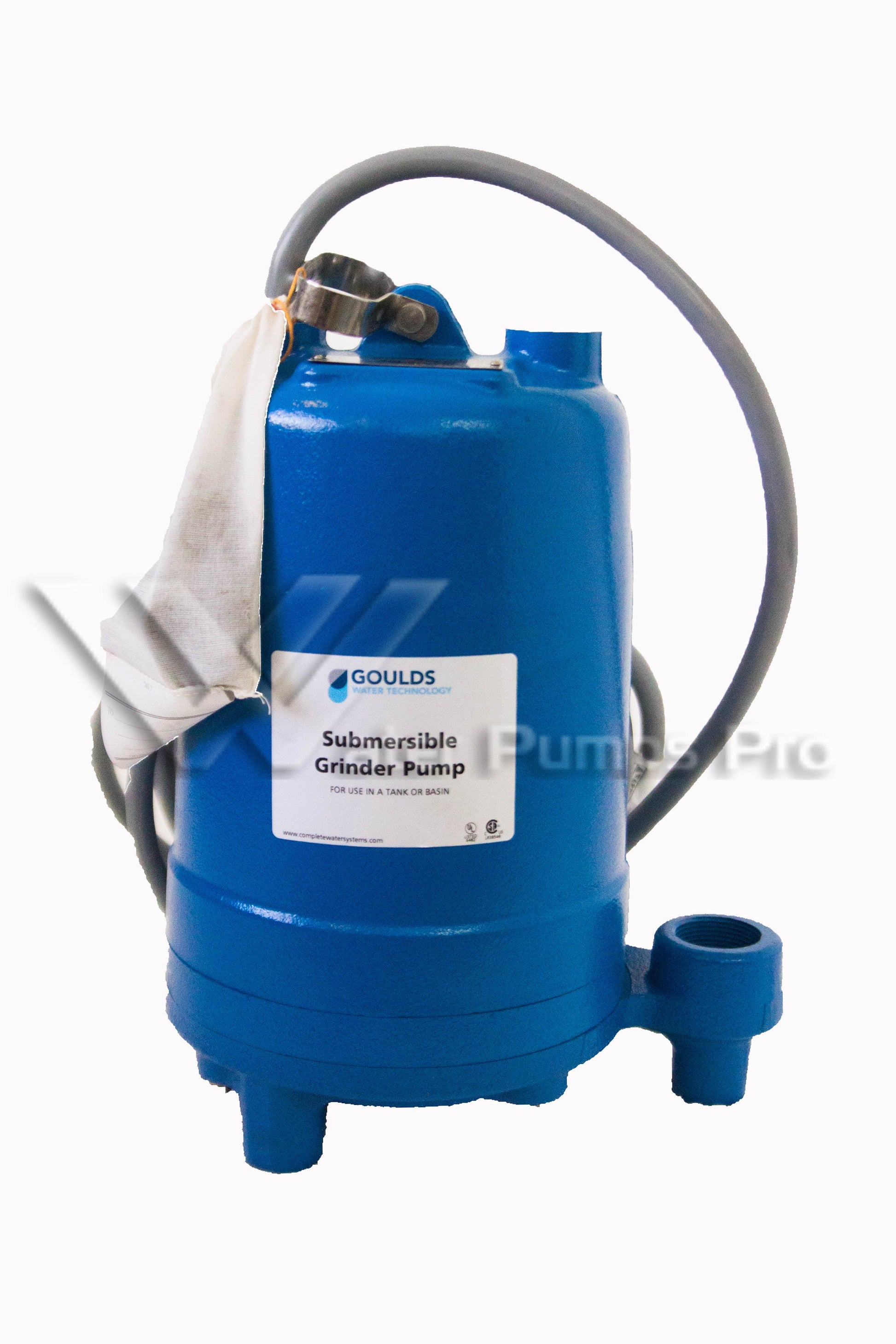

Goulds RGS2012PS Sub Grinder Pump 2HP 1 Phase 208/230V

This item is obsolete

Goulds RGS2012PS 208/230V, 1 Phase, 2 Horsepower, 3450 RPM, Manual Operation 30' cord with 230V plug

Features

• Design: Capable of grinding domestic sewage in individual residential applications.
• Cutter System: Anti-roping design. Two blade rotary cutter is threaded to shaft. Stationary cutter ring is reversible for extended service.
• Impeller: Silicon bronze, semi-open, non-overloading two-vane design with pump-out vanes for mechanical seal protection. Balanced for smooth operation.
• Casing: Cast iron, volute type for high efficiency. Adaptable for guide rail system.
• Motor: Fully submerged in oil-filled chamber. High grade turbine oil surrounds motor for more efficient heat dissipation, permanent lubrication of bearings and mechanical seal, and protection against outside environment.
• Motor Shaft: 300 series stainless steel, short overhang for minimum shaft deflection. Designed for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits, can be operated continuously without damage when fully submerged.
• Bearings: Upper and lower ball bearings for precision positioning of parts and to carry all radial and thrust loads.
• Mechanical Seal: Hardfaced Silicon carbide for longer life, stainless steel metal parts, BUNA-N elastomers.
• Power Cable: Severe duty rated, oil and water resistant. Epoxy seal on motor end provides secondary moisture barrier in case of outer jacket damage and to prevent oil wicking.
• O-Ring: Assures positive sealing against contaminants and oil leakage.
• Paint: Electro-coat paint process protects all casting surfaces. May be used with optional guide rail. See Fittings or Pump Removal Systems.

Applications

Designed for high head residential sewage applications where a gravity system is not practical. Ideal for pressure sewage systems.

Specifications

• Pump: Capacities: to 41 GPM Total heads: to 95' TDH Discharge: 1 1?4" NPT Temperature: 104 F (40 C) maximum continuous, 140 F (60 C) maximum intermittent Single mechanical seal: silicon carbide rotary/silicon carbide stationary, 300 series stainless steel metal parts, BUNA-N elastomers Fasteners: 300 series stainless steel Rotating cutter and cutter ring: 440 C hardened stainless steel Motor: Single phase: 2 HP, 60 Hz, 3450 RPM, 208/230 V, capacitor start with on winding thermal protector. No external capacitor kits required. Class F insulation Shaft: 300 series stainless steel threaded design Bearings: ball bearings upper and lower Power Cord with bare lead ends: Use for connections in a control panel or junction box Standard length 20', 14/3 STOW Optional lengths of 30', 50' and 100' Power Cord with 230 V NEMA three prong grounding plug: P suffix equals a 20' long cord with plug PS suffix equals a 30' long cord with plug Allows direct connection to piggyback type float switch
