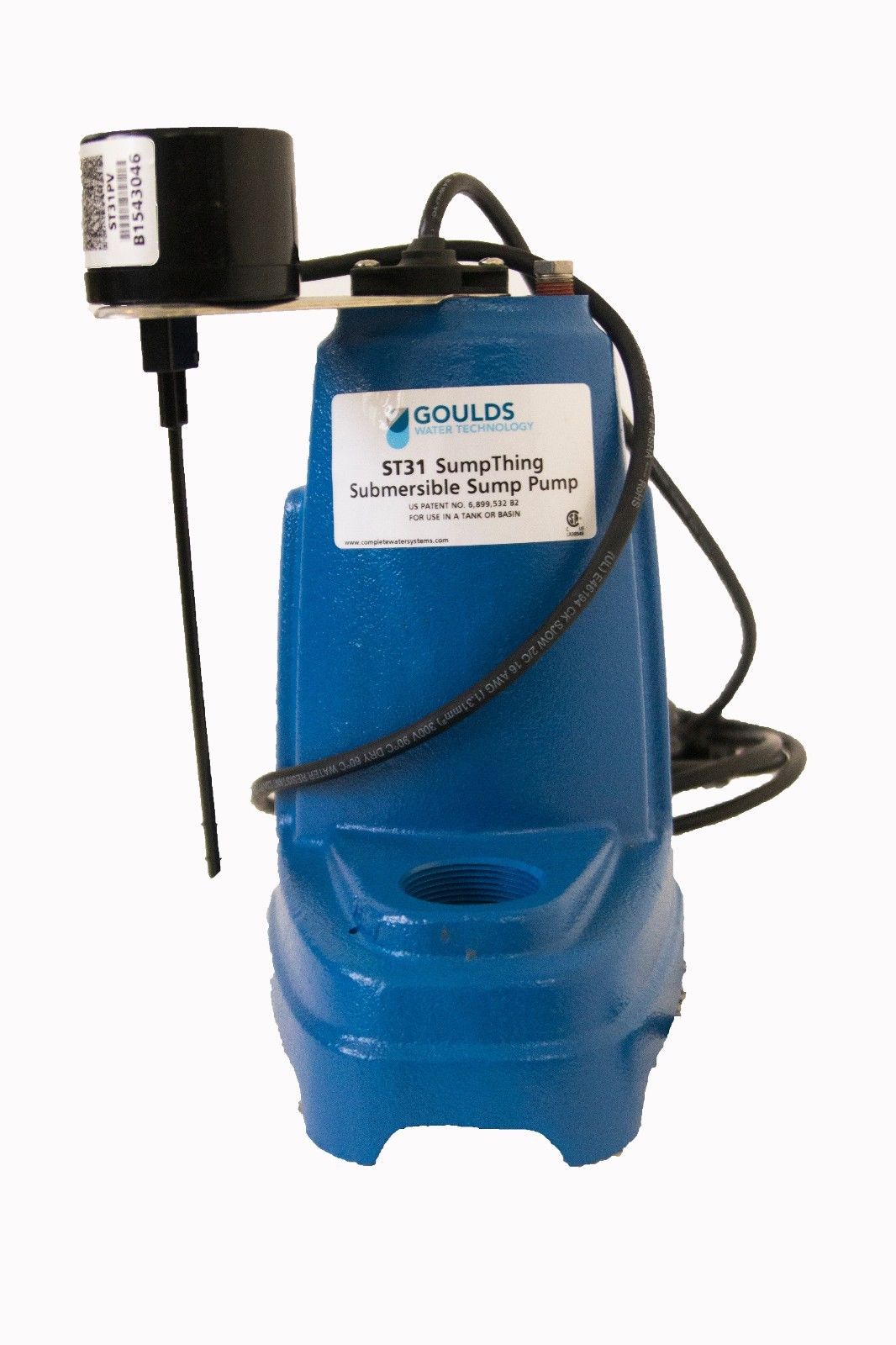

Goulds ST31PV Submersible Sump Pump 1/3HP 115V "Sump Thing"

This item is obsolete

Goulds ST31PV Submersible Sump

Pump 1/3HP 115V "Sump Thing"

Goulds ST31PV "Sump Thing" Submersible Sump Effluent Pump 1/3HP 115V, Piggy Back Vertical Switch, 10' Cord, 12 Amps

Features

Corrosion-resistant construction Cast iron body Thermoplastic impeller and cover Replaceable power cord Bearings: Upper sleeve and lower heavy duty ball bearing construction.

• Built-In Vent Hole: Prevents air-binding with no added labor. Motor is permanently lubricated for extended service life and is powered for continuous operation. All ratings are within the working limits of the motor. Complete unit is heavy duty, portable and compact.
• Mechanical Seal: carbon/ceramic/Buna/ stainless steel. Stainless steel fasteners and stainless steel pipe plug.

Applications

Specially designed for the following uses:

• Basement draining
• Water transfer
• Dewatering
• Effluent Transfer

SPECIFICATIONS Pump:

• Discharge size: 1-1/2" NPT
• Capacities: to 50 GPM.
• Maximum head: to 26 feet.
• Temperature: 104F (40C) maximum, continuous when completely submerged.
• Solids handling: 1/2" maximum sphere.

Automatic Model with a Piggy Back Vertical Switch included

• MOTOR
• ST31: 1/3 HP, 115 V, 60 Hz, single phase, 3000 RPM, 12.0 amps maximum.

Built-in thermal overload protection with automatic reset.

• Class B insulation
• Oil filled design
• High strength carbon steel shaft
• Power cord: Quick disconnect 10 foot standard length, heavy duty 16/3 SJTW

with NEMA 5-15 P three prong grounding plug, 115V.
