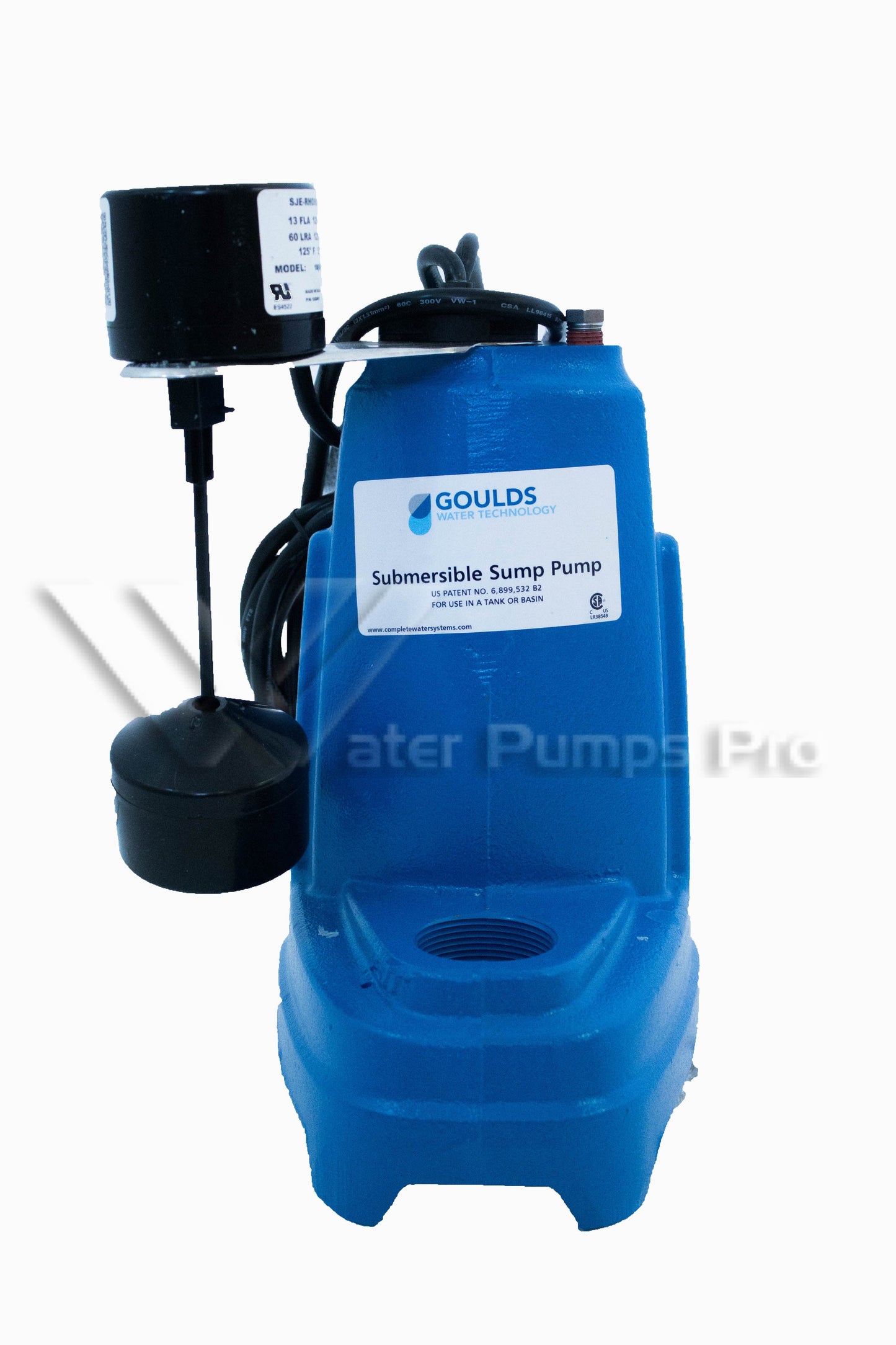

Goulds ST51AV Submersible Sump Pump 1/2HP 115V "Sump Thing"

This item is obsolete

Goulds ST51AV Submersible Sump Pump 1/2HP 115V "Sump Thing"

Goulds ST51AV "Sump Thing" Submersible Sump Effluent Pump 1/2HP 115V, Built-In Vertical Switch, 10' Cord, 7.5 Amps

Features

Corrosion resistant construction Cast iron body Thermoplastic impeller and cover Upper sleeve and lower heavy duty ball bearing construction. Motor is permanently lubricated for extended service life. Powered for continuous operation. All ratings are within the working limits of the motor. Power cord, 10' standard length, heavy duty 16/3 SJTW with 115 volt grounding plug and vertical switch. Complete unit is heavy duty, portable and compact. Mechanical seal is carbon, ceramic, BUNA and stainless steel. Stainless steel fasteners

Applications

Specially designed for the following uses:

• Basement Draining
• Dewatering
• Water Transfer
• Effluent Transfer
• SPECIFICATIONS Pump

General:

• Discharge: 1-1/2" NPT
• Temperature: 104F (40C) maximum, continuous when fully submerged.

Solids handling:1/2" maximum sphere.

• Automatic models include a float switch
• Pumping range: see performance chart or curve. ST51 Pump:
• Maximum capacity: 61 GPM
• Maximum head: 29' TDH

MOTOR General:

• Single phase
• 60 Hertz
• 115 volts

Built-in thermal overload protection with automatic reset.

• Class B insulation
• Oil-filled design

High strength carbon steel shaft ST51 Motor:

• .50 HP, 3400 RPM
• 115 volts
• PSC design
