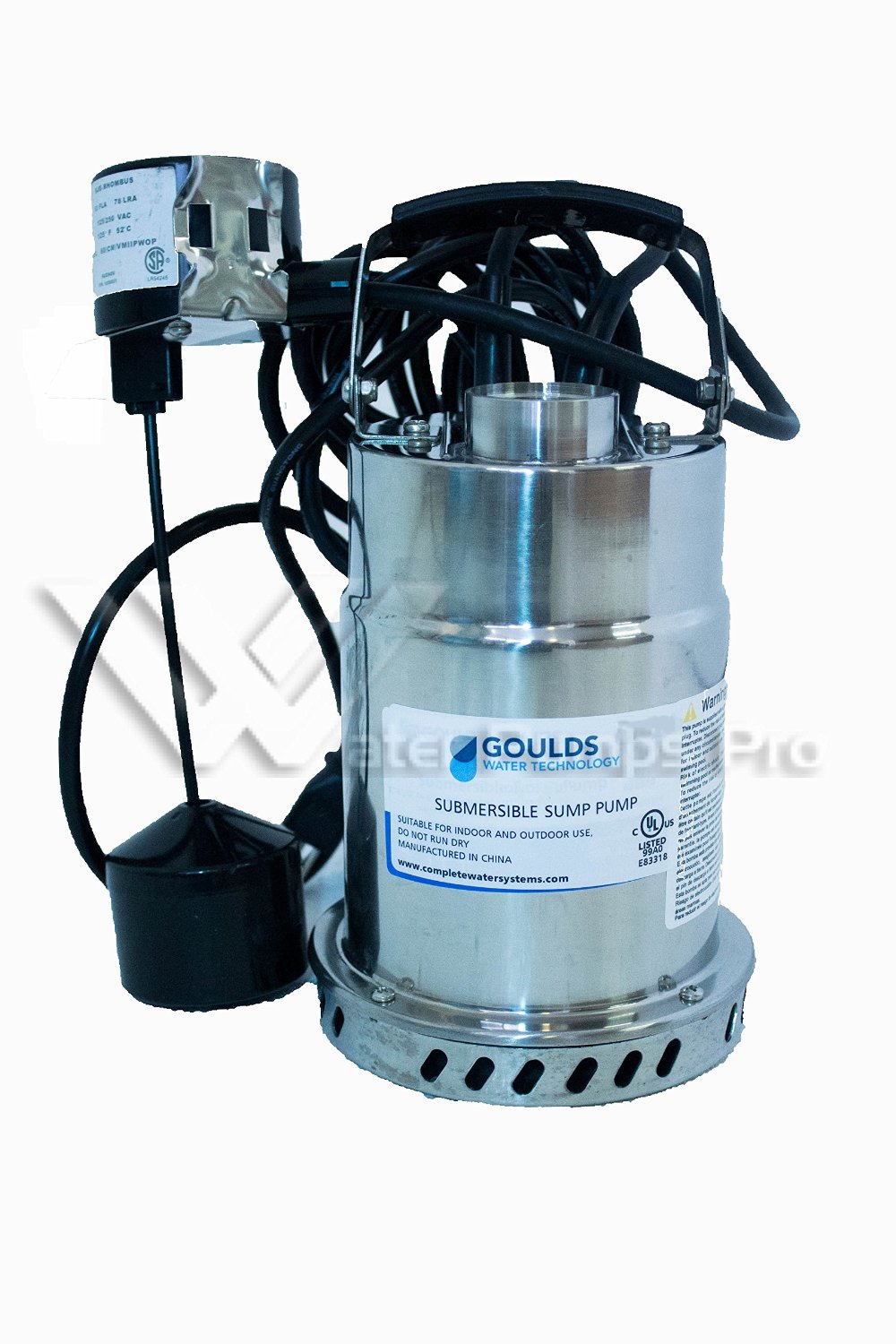

Goulds STS31V 1/3HP 115V Submersible Sump Pump

This item is obsolete

Goulds STS31V 1/3HP 115V Submersible Sump Pump 1 Phase, 4.5 Max Amps., Vertical Switch, 20' Cord

As of May 2016 the Goulds STS31V is obsolete. The replacement is the Goulds STS31M w/ float switch. The specs for the Goulds STS31M w/ Float switch are identical to the STS31V. If you have any further questions please contact us.*

Features

Corrosion-resistant construction. A mechanical seal protects the motor. It consists of ceramic/silicon carbide seal faces with BUNA elastomers. Glass-filled thermoplastic impeller and motor cover. Upper and lower heavy duty ball bearing construction. Air-filled motor mounted in aluminum housing. Motor is permanently lubricated for extended service life and is powered for continuous operation. All ratings are within the working limits of the motor. Includes vertical float switch and mounting pipe. Adjustable for various liquid levels. Complete unit is lightweight, portable and easy to service.

Applications

Specially designed for the following uses:

• Basement draining
• Water transfer
• Dewatering
• Filtered Effluent

Specifications

• Discharge size: 1 1/2" NPT.
• Capacities: to 38 GPM.
• Maximum head: 25 feet TDH.
• Maximum solids: 3/16" spherical
• Temperature: 104 F (40 C) maximum liquid temperature.
• Mechanical seal: ceramic/silicon carbide faces with BUNA elastomers.

MOTOR

Single phase, 3450 RPM, 60 Hz

STS31V, 1/3 HP, 115 V, 4.5 amps.

Built-in thermal overload protection with automatic reset.

Permanent-split-capacitor type.

Class B insulation.

Air filled design.

• Power cord length: 20 feet with NEMA 5-15P plug.
