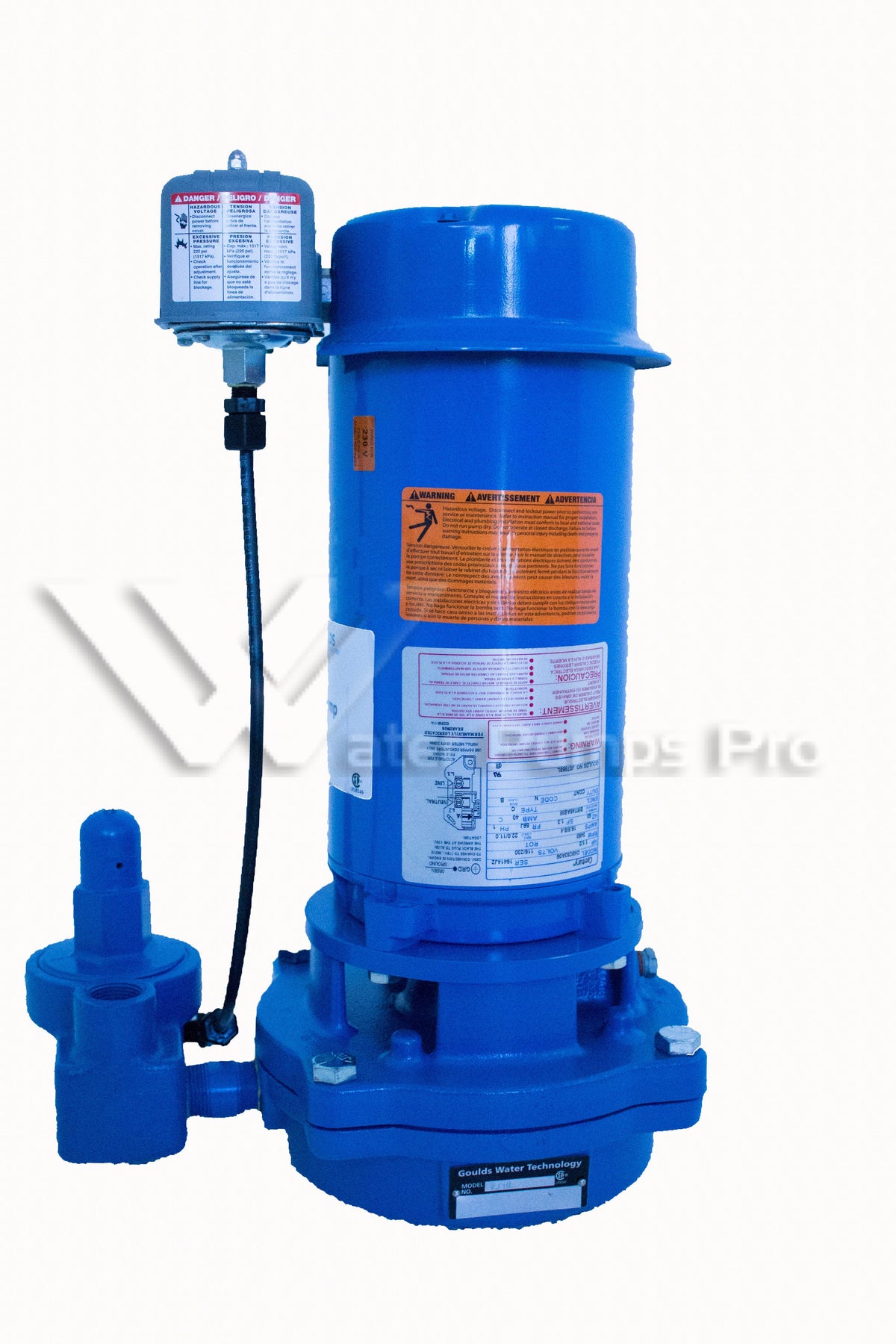

GOULDS VJ10 1 HP Vertical Deep Water Well Jet Pump 1 Stage 1PH

This item is obsolete

GOULDS VJ10 1 HP Vertical Deep Water Well Jet Pump 1 stage 1PH FEATURES High Capacity: Specifically designed to deliver water at high capacities. Easy to Service: Can be taken apart for service by removal of four bolts. Pipes do not have to be disturbed when service is required. Powered for Continuous Operation: Pump is designed for continuous operation. All ratings are within the motor manufacturer's recommended working limits. Corrosion-Resistant: Electrocoat paint process is applied inside and out and then baked on. Adjustable Automatic Pressure Control Valve: Guarantees maximum capacity at all times. By-pass check valve equalizes pressure in entire system and helps prevent loss of prime. Easy to Prime: The VJ series incorporates a vent at the highest point of the casing, including the mechanical seal chamber, for a more thorough air purging, and fast, efficient priming. APPLICATIONS Specifically designed for: Homes Farms Cottages SPECIFICATIONS Pump Pipe connection: 1" NPT drive (pressure) 1-1/4" NPT suction 1" NPT discharge. Pressure switch: AS4, preset (30-50 PSI). Motor NEMA standard. 1 HP, 115/230 V, 60 Hz, capacitor start. Single phase, 3500 RPM. Built-in overload with automatic reset. Stainless steel shaft. Rotation: clockwise when viewed from motor end. Maximum temperature: 140 F REQUIRED SYSTEM COMPONENTS Basic Pump Unit: Includes pump, motor, pressure switch, tubing, fittings, pressure gauge, bushing and pressure control valve (AV21). Deep Well Jet Assembly Package: Twin Pipe includes: Jet body, nozzle, venturi and foot valve. Packer includes: Jet body with built-in check valve, nozzle and venturi. See Performance Charts on following pages for Jet Assembly package order numbers.
