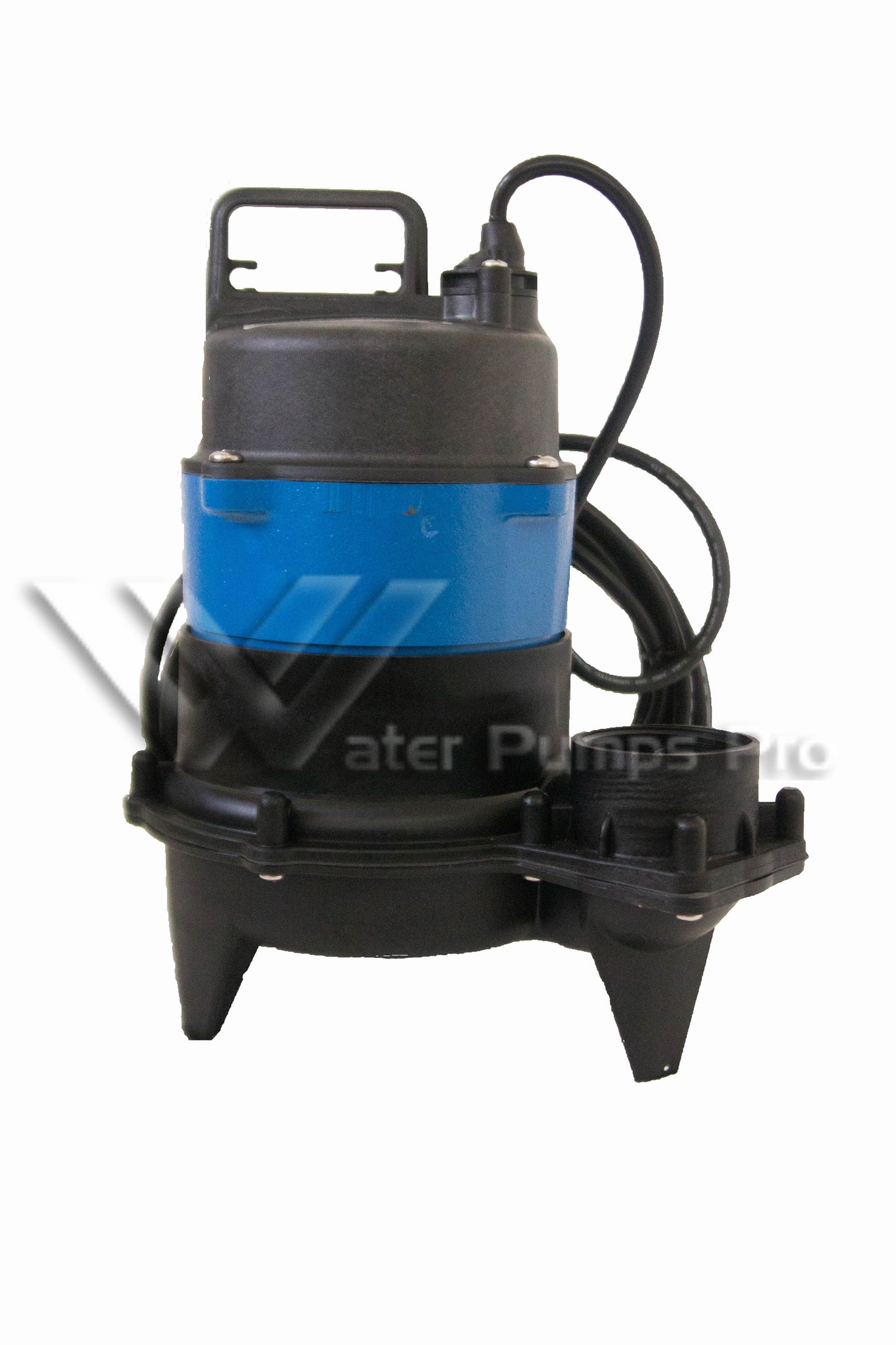

Goulds WW0511F Sub Sewage Pump 1/2 HP 115V 1 Phase

This item is obsolete

Goulds WW0511F Submersible Sewage Pump 1/2 HP 115V 1 Phase 2" Solids Plug/No Float Switch 13 Amps

Features

• Impeller: Glass-filled thermoplastic Full-Vortex design with pump out vanes for mechanical seal protection. Casing and Base: Rugged glass-filled thermoplastic design provides superior strength and corrosion resistance.
• Motor Housing: Cast iron for efficient heat transfer, strength, and durability.
• Motor Cover: Thermoplastic cover with integral handle and float switch attachment points.
• Bearings: Upper and lower heavy duty ball bearing construction.
• Power Cable: Severe duty rated oil and water resistant.
• O-ring: Provides positive sealing. Easily replaced during maintenance. Stainless steel fasteners

Applications

Specifically designed for the following uses: Residential sewage systems Dewatering Water transfer Anywhere waste or drainage must be disposed of quickly, quietly and efficiently.

Specifications

• Pump: Solids handling capability: 2" maximum Capacities: up to 75 GPM Total heads: up to 18 feet Discharge size: 2" NPT Mechanical seal: carbon-rotary/ceramic-stationary, BUNA-N elastomers Temperature: 104 F (40 C) continuous 140 F (60 C) intermittent Class B Insulation Fasteners: 300 series stainless steel Capable of running dry without damage to components. Motor Single phase: 1/2 HP, 115 or 230 V, 60 Hz, 1550 RPM, built in overload with automatic reset. Power cord: 10 foot standard length, 16/3 SJTW with three prong grounding plug. Optional 20 foot length, 16/3 SJTW with three prong grounding plug. Fully submerged in high grade turbine oil for lubrication and efficient heat transfer.
