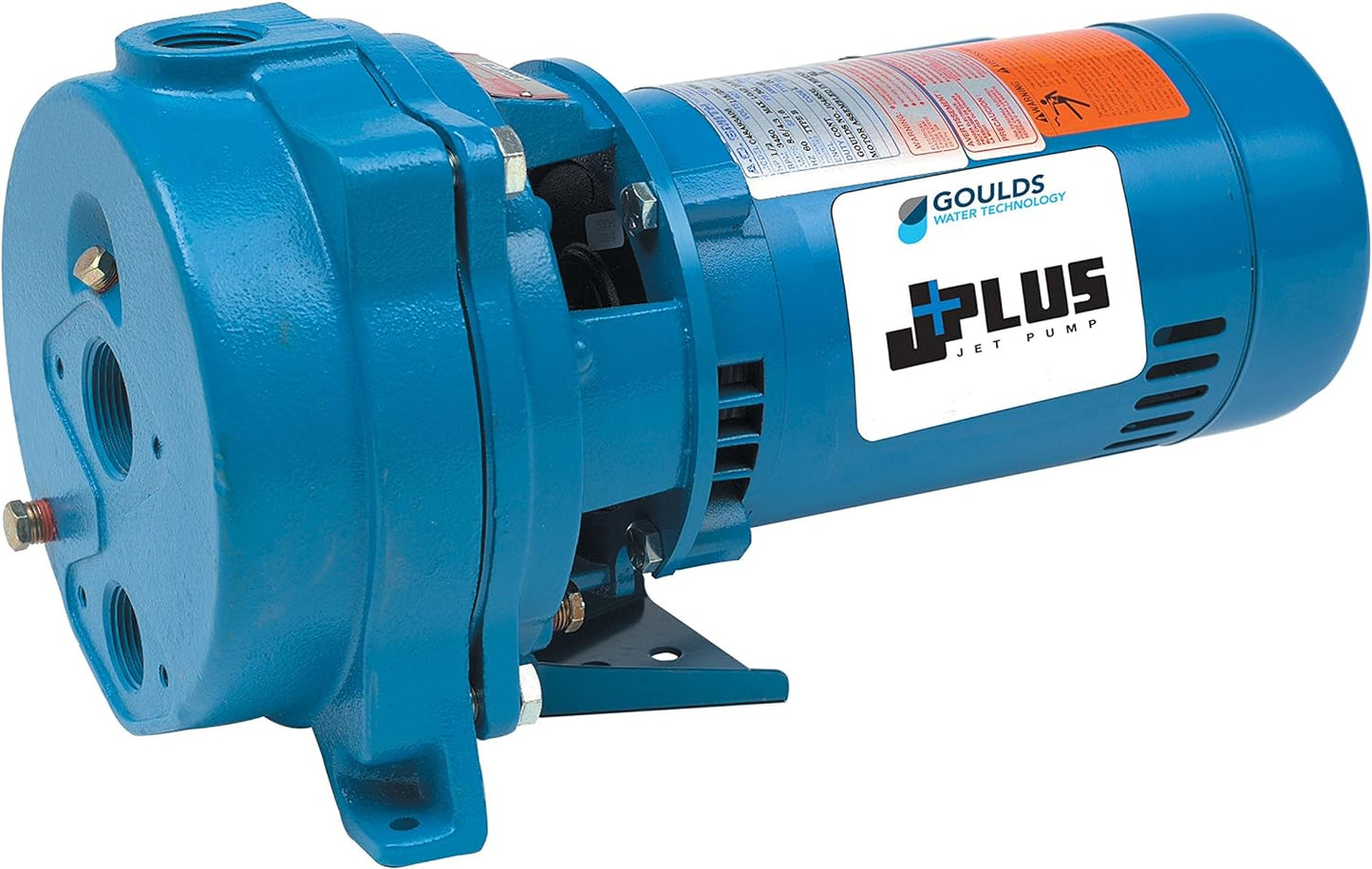

Goulds J15 1 1/2 HP Convertible Water Well Jet Pump 115/230V
Goulds J15 1 1/2 HP Convertible Water Well Jet Pump 115/230V
See price in cart.
Couldn't load pickup availability
Goulds J15 1 1/2 HP Convertible Water Well Jet Pump 115/230V 1.5HP, Single Phase, 115/230V
The J+ Convertible well jet pumps may be used on shallow or deep well applications using appropriate Goulds Water Technology fittings. J+ pumps are easily serviceable with a back pullout design for service without disturbing piping. Two compartment motor for access to wiring and replaceable components. Nozzle clean out plug in shallow well adapter. Corrosion resistant, plastic tubing and fittings are easily removed for cleaning. The J+ Pump is specifically designed for homes, cottages, ad booster service.
Product Details
Product Details
Specifications:
- Horsepower: 1.5
- Phase: Single
- Volts: 115/230
- Pipe Connections: 1-1/4" Suction, 1" discharge
- Pressure switch: AS4 (30/50 Preset)
- Built-in overload with automatic reset
- Rotation: clockwise when viewed from motor end
Includes pump and motor, pressure gauge
and bushing, pressure switch with tubing and fittings.
NOTE: THE TUBING COMES CONNECTED FOR SHALLOW
WELL USE. A DEEP WELL SET UP REQUIRES A JDW FITTINGS PACKAGE OR AN AV22 KIT.
Both include additional fittings and a 24" tubing to connect to a pressure control valve.
Additional Components Required but not Included for Convertible Jet Pumps:
- Shallow Well Package: Shallow well adapter, nozzle, venturi (diffuser), gasket, bolts and pipe plugs
- Deep Well Package:
Twin Pipe: Jet body, nozzle, venturi (diffuser), and foot valve
Packer System: Packer body, nozzle, venturi (diffuser), and built-in check valve.
Deep well systems require a pressure control valve.
NOTE: YOU MUST HAVE A JDW OR AV22 KIT TO MAKE THE PRESSURE SWITCH CONNECTION.
Pressure tank required on all systems.
